Padeye pin hole clearance: why the rule bites

The short answer

Clearance costs shear-out, not bearing. Opening the hole moves the shear-out planes outward and shortens them; the pin never changed, so bearing does not move at all.
In the worked sweep, going from 2 mm to 24 mm of clearance took shear-out from 65 percent to 83 while bearing sat at 48.2 percent throughout and the weld did not move either.
The rule of thumb that bites is the one about bearing. People open a hole expecting to pay in bearing, check bearing, find it unchanged, and conclude the change was free.
There is a second limit with no formula: a hole much larger than the pin lets the pin bed into a small arc of the bore, and the local contact stress is not what a uniform bearing calculation reports.
Specify the hole against the pin you are actually rigging to, and put the clearance on the drawing as a dimension somebody can measure.

What clearance actually changes

Two things, and neither is the one people check. It shortens the shear-out planes and it narrows the net section, and both of those are plate checks rather than pin checks.

Put a pin of diameter $d_{p}$ through a hole of diameter $d$ .

Clearance on diameter

c = d - d_{p}

One dimension, and it moves three separate quantities on the plate.

The shear-out length shortens. Shear-out is two planes running from the edge of the hole to the free edge. Open the hole and the planes start further out, so they are shorter, so their area is smaller.

The net section narrows. The net width is the plate width minus the hole diameter. A bigger hole removes more plate.

The bearing area does not change. Bearing is the pin's projected area on the plate: pin diameter times plate thickness. The pin is what it is, and the hole around it does not appear in that product at all.

That last point is the whole article. It is counterintuitive because the hole is what got bigger, and the check people reach for when a hole gets bigger is bearing.

The two dimensions clearance moves are both on the plate: the shear-out planes running up from the hole to the free edge, and the net width across it. The pin's projected area is not one of them.

The sweep: what moves and what does not

One padeye, one load, one pin, six hole sizes. Two checks climb steadily and two do not move at all.

A 250 kN lift point on a 54 mm pin, 30 mm plate 240 mm wide, 80 mm from the hole centre to the top edge, with the hole opened from a close fit to a hole somebody enlarged on site.

Hole	Clearance	Shear-out	Net-section tension	Bearing	Weld
56 mm	2 mm	65.1%	21.3%	48.2%	47.9%
58 mm	4 mm	66.4%	21.5%	48.2%	47.9%
60 mm	6 mm	67.8%	21.7%	48.2%	47.9%
64 mm	10 mm	70.6%	22.2%	48.2%	47.9%
70 mm	16 mm	75.3%	23.0%	48.2%	47.9%
78 mm	24 mm	82.6%	24.2%	48.2%	47.9%

Utilisation against hole clearanceOne 250 kN padeye on a 54 mm pin, hole opened from 56 mm to 78 mm

Shear-out
Bearing
Net-section tension

Two lines climb and one does not. The table above adds a fourth check that does not move either, the weld, which is nowhere near the hole. That is the finding, and it inverts the intuition: the check that responds to a bigger hole is the one about the plate above it, not the one about the pin inside it.

The change nobody records

A hole opened on site to take a bigger shackle pin, checked before and after.

Lifting Lug Calculator · computed at page render

A close fit: 2 mm on diameter

The hole as drawn, sized to the pin.

Pin	54mm
Hole	56mm
Double-plane shear-out	65.1%
Net-section tension	21.3%
Pin bearing on the lug	48.2%
Fillet weld throat resultant	47.9%

Governing check: Double-plane shear-out (mechanics)65.1% utilisationPass

Open this example in the calculator

Lifting Lug Calculator · computed at page render

The same lug with the hole opened to 78 mm

24 mm of clearance on a 54 mm pin. Nothing else changed: same plate, same edge distance, same weld, same load.

Hole24 mm clearance on diameter	78mm
Double-plane shear-outagainst 65.1% at a close fit	82.6%
Net-section tensionagainst 21.3%	24.2%
Pin bearing on the lugidentical: the pin did not change	48.2%
Fillet weld throat resultantidentical	47.9%

Governing check: Double-plane shear-out (mechanics)82.6% utilisationPass

Twenty-seven percent added to the governing check, from a change made with a magnetic drill in twenty minutes. And the check somebody would have looked at, bearing, is identical to three significant figures.

Open this example in the calculator

The limit with no formula

A hole much larger than the pin does not load the plate the way a uniform bearing calculation assumes, and no amount of clearance arithmetic reveals that.

Every bearing calculation in this article divides the force by the pin's projected area, which assumes the pressure is spread over that whole projection. It is not, and the discrepancy grows with clearance.

A pin in a close-fitting hole beds against a wide arc of the bore, and the contact pressure is distributed. A pin in a much larger hole touches over a narrow arc, and the peak contact pressure there is considerably higher than the average the calculation reports. The plate can be locally yielding at the contact while a bearing check says it is at half capacity.

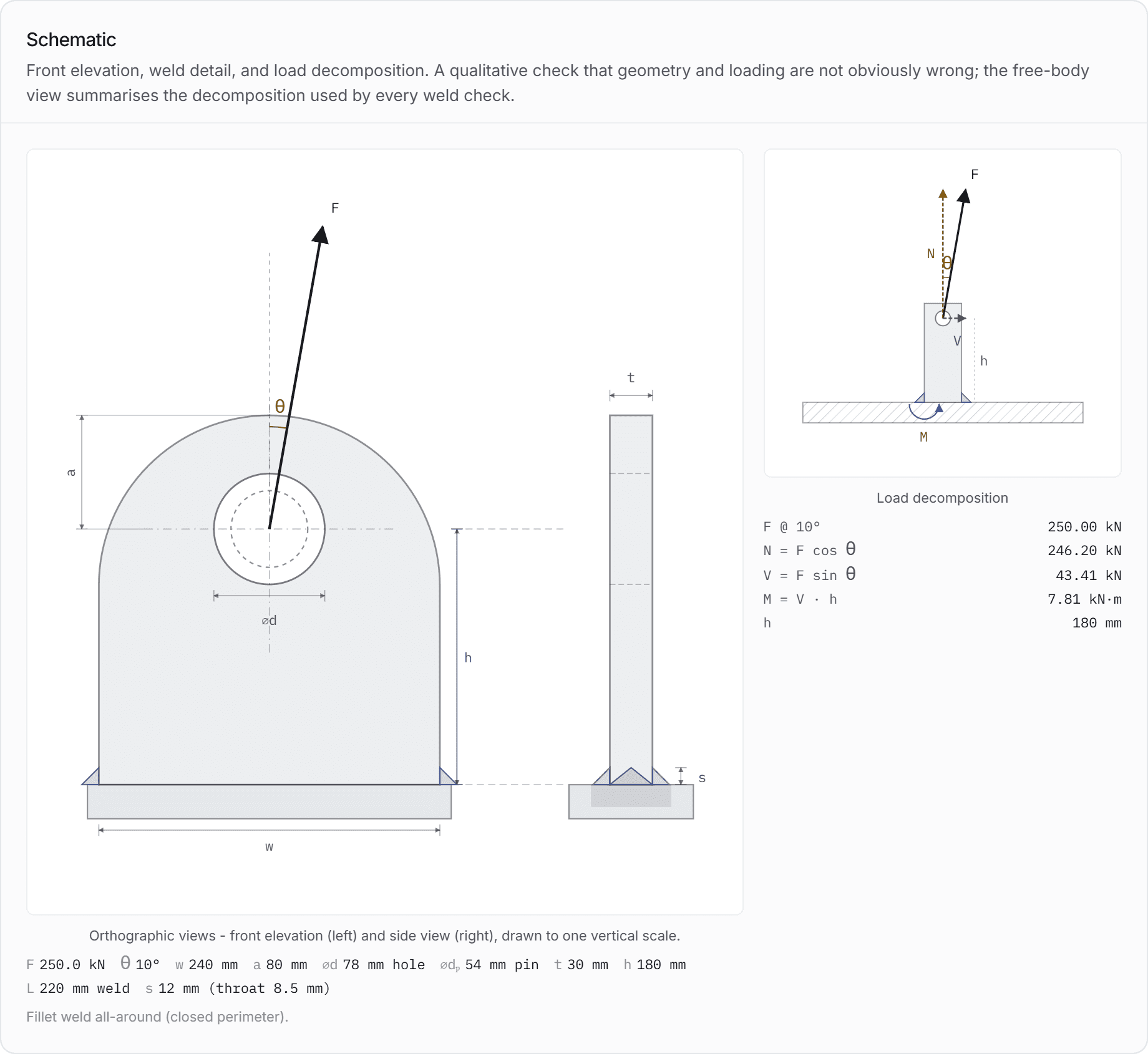

The loosest case in the sweep above, drawn by the calculator on those inputs. The dashed circle is the pin and the solid one is the hole, and the gap between them is the whole subject of this article: the bearing check divides by the pin's projection regardless of it, while the shear-out planes shorten with every millimetre the hole grows.

Three practical consequences:

Clearance is specified, not left to the fitter. The reason is this effect, not the arithmetic above. A drawing that says "hole to suit shackle" has delegated a structural decision to somebody with a drill.

A loose hole is worse under repeated loading. A pin that beds into a small arc, is unloaded, and beds into a slightly different arc next time, is working the plate locally. That is the mechanism the service class in a below-the-hook design scheme is about.

Where the clearance has to be large, add material at the hole. A cheek plate increases the bearing area and the contact arc together, which is exactly the case cheek plates are for.

Specifying it so the drawing survives the yard

Five habits. All of them are about making the hole a dimension somebody can check rather than a fit somebody can judge.

Getting the hole right on the drawing

01Name the shackle you are designing aroundMake, size and rating in the calculation, so the pin diameter has a source.
02Dimension the hole, not the fitA diameter with a tolerance. Not 'to suit', not 'clearance hole'.
03State the clearance the calculation usedOn the drawing as a note, so an alteration is visibly an alteration.
04Check shear-out at the hole you drewIt is the check clearance moves, and it moves it steadily.
05Say what happens if the shackle changesA note requiring the change to be referred back, because the person with the drill is not the person with the calculation.
06Consider a cheek plate where clearance has to be generousIt raises both the bearing area and the contact arc, which is the pair of problems a loose hole creates.

Five ways clearance goes wrong

Four of them start with checking the wrong quantity.

1. Bearing checked after opening a hole. It does not move. The check that moved is shear-out.

2. The hole enlarged on site with no recheck. A twenty-minute job that added 27 percent to the governing check in the worked example.

3. The hole drawn to the pin and built to the shackle. The shackle that arrives is not always the shackle that was specified, and its pin is what the hole ends up sized against.

4. A very loose hole treated as a uniform bearing problem. The contact is over a narrow arc, and the peak pressure is not the average the calculation reports.

5. A tight fit specified without asking whether it can be assembled. A hole with no clearance is a hole a shackle cannot be pinned through on a windy day. Clearance exists for a reason and the answer is a specified clearance, not none.

Common questions

What clearance should a padeye hole have over the pin?: Whatever your design route specifies, and the important part is that it is specified rather than left to the fitter. A close fit is easier to justify structurally and harder to assemble on a windy day, so real clearances are a compromise. What matters is that the calculation used the hole on the drawing, the drawing carries the hole as a dimension with a tolerance, and the shackle the design was based on is named.
Does opening a padeye hole affect bearing?: No, and this is the finding that surprises people. Bearing is the pin's projected area on the plate, pin diameter times plate thickness, and the hole does not appear in that product at all. In the worked sweep the bearing check sat at 48.2 percent for every hole from 56 mm to 78 mm on the same 54 mm pin. What does move is shear-out, which rose from 65 percent to 83 across the same range.
Why does hole size change shear-out?: Because shear-out is taken over two planes running from the edge of the hole to the free edge. Open the hole and those planes start further out, so they are shorter, so their area is smaller and the stress on them is higher. The net section narrows for the same reason - the net width is the plate width minus the hole diameter - but shear-out moves faster because the edge distance is the smaller of the two dimensions.
Is a loose pin hole dangerous even if the checks pass?: It can be, and this is the limit with no formula. Every bearing calculation assumes the pressure is spread over the pin's whole projection, which is roughly true in a close-fitting hole and progressively less true as clearance grows. A pin in a much larger hole beds against a narrow arc of the bore, and the peak contact pressure there is well above the average the calculation reports. That is the reason clearance is specified rather than judged, and it is worse under repeated loading.
Can I enlarge a padeye hole on site for a bigger shackle?: Not without rechecking, and the check to look at is shear-out rather than bearing. In this article's worked example, opening a 56 mm hole to 78 mm on the same lug added 27 percent to the governing check, while bearing was identical to three significant figures. It is a twenty minute job with a magnetic drill and it is a design change, so it should be referred back to whoever produced the calculation.
